Ford Edge Concept

Page 1: Summary
Page 2: Chassis
Page 3: Powertrain
Page 4: Exterior / Interior
Page 5: Specifications


Construction Unibody
Final Assembly Location Oakville, Ontario

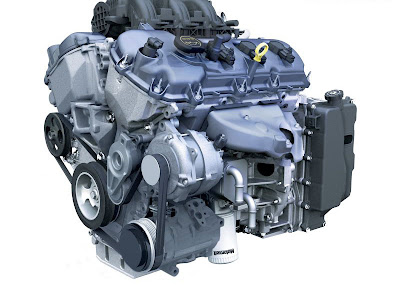

Type 3.5L DOHC 24-valve V6
Manufacturing Location Lima Engine Plant, Ohio
Configuration 60 degree V6, aluminum block and heads
Intake Manifold Composite, split plenum
Exhaust Manifold Cast Iron
Crankshaft Forged steel
Redline 6700 RPM
Idle Speed in Drive 620 RPM (640 with trailer tow package)
Throttle Body 65mm, electronic
Valvetrain DAMB, 4 valves per cylinder, intake variable camshaft timing
Valve Diameter Intake: 37mm; Exhaust: 31mm
Pistons High temperature cast aluminum alloy with low-friction coated skirts, low tension rings
Connecting Rods Cracked powder metal
Ignition Pencil Coil
Bore x stroke 3.6 x 3.4 in/ 92.5 x 86.7 mm
Displacement 213 cu in/ 3.496 cc
Compression ratio 10.3:1
Horsepower 250 @ 6250
Horsepower per liter 71.5
Torque 240 lb-ft @ 4500
Recommended fuel 87 Octane
Fuel capacity 20 gallons
Fuel Injection Sequential multi-port fuel injection
Emission Control Closed loop with catalyst
Emissions (tailpipe/evaporation)
Federal standards Fed: Tier 2/Bin5, LEV II
California standards Calif: ULEV II
Oil Capacity 5.5 quarts, with filter
Recommended Oil GF4, 5W-20
Layout FWD (Optional AWD)
Standard 6-Speed Automatic
Gear Ratios
1st 4.484
2nd 2.872
3rd 1.842
4th 1.414
5th 1.000
6th 0.742
REV -2.882
Final Drive FWD: 2.77; AWD: 3.16
Front Macpherson strut and L-shaped lower control arm with isolated subframe and stabilizer bar
Rear Independent suspension with trailing blade, integrated knuckle and lateral links, isolated subframe and stabilizer bar
Type Power rack and pinion
Steering column Tilt-telescope
Ratio 17.5:1
Turns lock-to-lock 3.15
Turning circle curb-to-curb 11.5 m (37.7 ft)
Type 4-wheel ABS (4 channel); Optional AdvanceTrac® with Roll Stability Control (RSC®)
Front Disc
Swept area FWD (63.5 in2) AWD (66.8 in2)
Rear Disc
Swept area 51.3 in2
Power assist Yes

P235/65R17 all-season BSW on 17x7-in. steel with cover (SE)
P235/65R17 all-season BSW on 17x7.5-in. painted aluminum (SEL, optional SE)
P245/60R18 all-season BSW on 18x7.5-in. painted aluminum or aluminum with chrome (optional SEL)
Recommended tire pressure (front/rear) 35 psi
DIMENSIONS (inches unless otherwise noted) (All dimensions are Preliminary)
Wheelbase 111.2
Overall length 185.7 (SE); 186.5 (SEL)
Overall width 75.8
Overall height 67.0 (w/o roofrack); 68.7 (w/roofrack)
Track width, front/rear 65.2/64.9
Ground clearance 8.0
Approach angle 16 deg
Departure angle 22 deg
Ramp breakover angle 14 deg
Cargo Volume behind front row 68.7 cu ft
Cargo Volume behind second row 32.0 cu ft
Seating capacity 5 passenger
Front row 40.0 (w/o moonroof); 37.8 (w/moonroof)
Second row 39.3 (w/o moonroof); 38.6 (w/moonroof)
Front row 40.7
Second row 38.1
Shoulder room
Front row 58.9
Second row 58.8
Hip room
Front row 54.8
Second row 56.1
WEIGHTS AND CAPACITIES (pounds unless otherwise noted)
Maximum towing capacity
(when properly equipped)
Class II (3500 lbs)
Maximum payload (when properly equipped)
FWD SE: 1011; SEL: 1023
Base curb weight
SE 4098
SEL 4086
Weight distribution (f/r) 60/40
SE Model Anti-lock brakes, spoiler, remote keyless entry, manual fold power mirrors, cloth bucket seats, 2nd row 60/40 split-fold-flat bench seats with center head restraint, 3-point belts in all positions, front row height adjustable seat belts, BeltMinder® (front row), Personal Safety System™, child safety locks, LATCH, front and rear floormats, front console, manual air conditioning, power windows with one-touch down driver, power locks, speed control, premium AM/FM/Single CD/MP3 capable audio system and 4 speakers
SEL adds Fog lamps, 6-way power driver seat, overhead console, premium CDx6 with 9 speakers, steering wheel audio controls, unique Interior treatments, message center/compass, chrome exhaust tips, dual illuminated visors
Interior Side air bags, Safety Canopyâ„¢, auto-dimming rearview mirror, premium CDx6, audio jack in center console, SIRIUS Satellite radio

SEL only options: Leather seats, 6-way power passenger seat, passenger seat fold flat, heated seats, memory driver seat, remote release on 2nd row fold-flat seats, dual electronic automatic temperature control with air filter, manual fold power heated side mirrors with puddle lamps and memory, audiophile sound, DVD entertainment system, navigation system, redundant climate controls on steering wheel
Exterior AWD, AdvanceTrac® with Roll Stability Control™, Class II trailer tow package, automatic headlamps, roof side rails, 17" painted aluminum wheels, keyless entry pad

SEL only Options: Panoramic Vista Roofâ„¢, Reverse Sensing System, 18" chrome clad or painted aluminum wheels
Exterior color Blazing Copper, Crème Brulee, Redfire, Ebony, Carbon, Dune Pearl, Pewter, Light Sage, Dark Amethyst
Interior trim Medium Light Stone, Camel, Charcoal Black
Warranty 3-year, 36,000 bumper-to-bumper warranty
